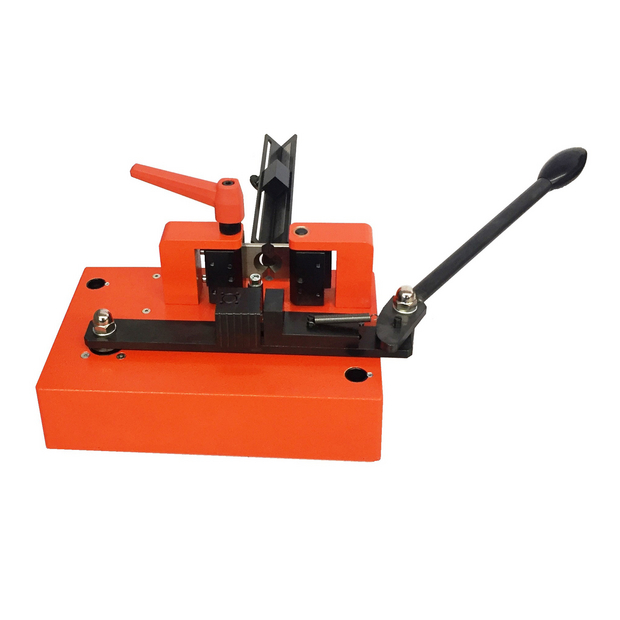

Simplex 30

Stripping instrument with hand lever

Description

Equipment to dismantle strands and cable up to 30 mm diameter.

Usage

  • Put the cable between the blades towards the length - stop.
  • Fix it with the lever and pull.
  • The blades can be changed without tools - fitting system

Downloads

Data sheet

Technical specifications

Dismantling lengthup to 150 mm
Cable diameterup to max. ca. 30 mm
Cable dismantling knife as couple with two diameters
 		2/3 mm; 4/5 mm …. 26/27 mm
Special knife for non-circular geometrieson request
width300 mm
depth150 mm
height150 mm
weight5,4 kg
