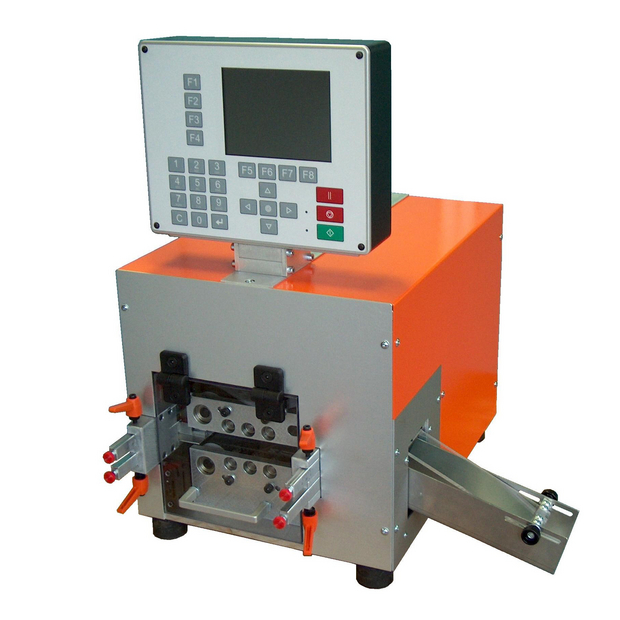

Schneidmaster 15/40

Electro-pneumatic cutting machine for cables, cords and hoses

Description

Cutting machine with material feed opening up to 15 mm in diameter or 40 mm in width.

Usage

Belt drive by means of stepping motor, cutting length is measured electronically, pneumatic cutting.

Characteristics

  • Quickly type of length, speed and No. of items available via function keys.
  • Display the follower length and No. of items
  • Length can be calibrated
  • different modes for printer connection and extending stations
  • Control by external inputs / outputs or RS 232 connection for material feed and storage equipment
  • Text displayed in german or english
  • Error output in words
  • Pneumatic opening of the drive to insert the material to be cut
  • Adjustable contact pressure
  • simply changing the cutting units
  • Machine stops automatically at end of material or reached No. of items
  • optional units for cutting hoses or cables

Downloads

Data sheet

Technical specifications

Material forward max.Ø 15 mm, width 40 mm
Cutting length1-999.999,9 mm
No. of items1-999.999
Transport speedmax. 40 m/min
Working noise65 dBA
Power supply230 V, 50 Hz
Compressed air connection6 bar
width: 500 mm depth: 470 mmheight: 580 mm
weight27 kg
