Electric hand stripping machine


Electrical stripping machine for varnished wires

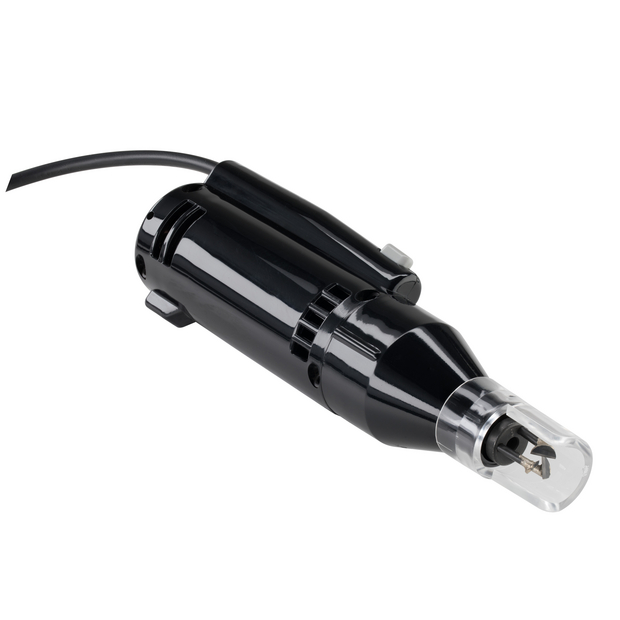

The Abisofix consists of a motor unit and a stripping head. The stripping head is equipped with 3 hard metal blades. The blades are closed by rotation. The speed is regulated via transformer and thus the pressing force of the blades is adjusted to each material thickness. Insert wire between blades when stationary. Switch on Abisofix — remove wire through rotating blades.

Standard for enamelled wires

  • Typ 1 Ø 0,2 - 0,8 mm
  • Typ 3 Ø 0,6 - 2,0 mm
  • Typ 5 Ø 1,2 - 4,0 mm
  • Stripping space 3 mm
  • Stripping length70 mm

ML für enamelled wires

  • Typ 1 ML Ø 0,2 - 0,8 mm
  • Typ 3 ML Ø 0,6 - 2,0 mm
  • Typ 5 ML Ø 1,2 - 4,0 mm with limiting knive and length stop

KMK Small knive head e.g. for pins

  • Ø 0,5 - 1,2 mm
  • Classification 0,1 mm
  • Stripping space 1 mm
  • Head - Ø 8 mm

Carbide cutter

  • for flat copper

Type V

  • for twisting wire ends Ø 0,14 - 2,5 mm

Type VH

  • for twisting of the loop ends bis Ø 0,6 mm

Type FML

  • für wires Ø 0,5 - 1,5 mm

Table mount

  • width footswitch

    Technical specifications Abisofix

    DC motor16-42 V
    length180 mm
    Diameter55 mm
    weight500 g

    Technical specifications Transformator

    Primary voltage230 V
    oder 110 V
    Secondary voltage16-42 V
    Input power35 VA
    Weight1100 g
